家へ > 製品 > 工業用酸素発電機 > Powerful Plateau Oxygen Generator: Fast Oxygen Supply for Thin Air

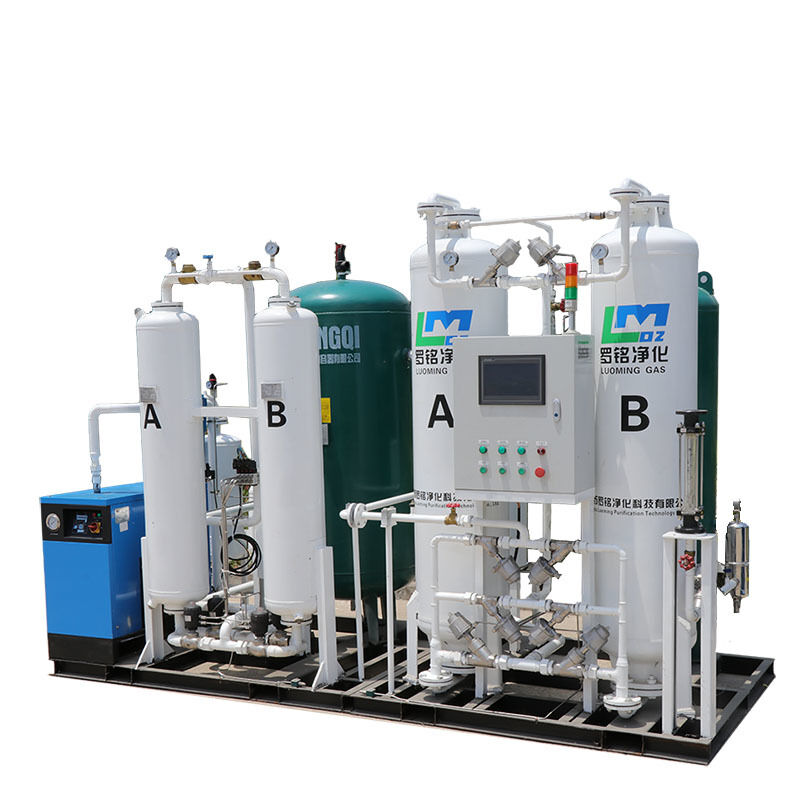

Powerful Plateau Oxygen Generator: Fast Oxygen Supply for Thin Air

製品詳細

起源の場所: 江蘇

ブランド名: Luoming

証明: ISO CE

モデル番号: LMO

支払いと送料の条件

最小注文数量: 1セット

価格: USD15000

パッケージの詳細: 木製ケース

受渡し時間: 30日

支払条件: LC、T/T

供給の能力: 1か月あたり100セット

最高 の 価格 を 入手 する
ハイライト:

industrial oxygen generator with fast supply

,

plateau oxygen generator for thin air

,

powerful oxygen generator with warranty

名前:
高原酸素発生装置
該当する業界:
エビ/養魚場など。
材料:
炭素鋼/ステンレス鋼
保証:
1年
手術:
自動
ポート:
中国港
サービスライフ:
10年以上
テクノロジー:
圧力スイング吸着(PSA)
カスタム処理:
はい
アフターサービスの提供:
ビデオ技術サポートオンラインサポート
名前:
高原酸素発生装置
該当する業界:
エビ/養魚場など。
材料:
炭素鋼/ステンレス鋼
保証:
1年
手術:
自動
ポート:
中国港
サービスライフ:
10年以上
テクノロジー:
圧力スイング吸着(PSA)
カスタム処理:
はい
アフターサービスの提供:
ビデオ技術サポートオンラインサポート
Powerful Plateau Oxygen Generator: Fast Oxygen Supply for Thin Air
Powerful Plateau Oxygen Generator: Fast Oxygen Supply for Thin Air
The high-altitude diffusion oxygen supply system features a simple design with low operation and maintenance costs. Its architecture primarily consists of an oxygen generator (typically a medium-sized molecular sieve oxygen generator), conveying pipelines, and diffusion devices, eliminating the need for complex pressure reduction or monitoring systems. During installation, oxygen production volume is calculated based on space area requirements. The flexible pipeline layout minimizes engineering volume and reduces costs (e.g., hotel room modifications cost significantly less than hospital oxygen supply terminal installations). Maintenance simply requires regular checks of the oxygen generator's operation status and cleaning of diffusion device filters, with no need for specialized medical personnel. Ideal for non-medical high-altitude locations including hotels and office buildings.
Powerful Plateau Oxygen Generator: Fast Oxygen Supply for Thin Air 0
Product Specifications
Model Purity Flow Outlet
LMO-193±2%1Nm3/hRegular outlet pressure 1-5Mpa adjustable
LMO-593±2%5Nm3/h
LMO-1093±2%10Nm3/h
LMO-1593±2%15Nm3/h
LMO-2093±2%20Nm3/h
LMO-2593±2%25Nm3/h
LMO-3093±2%30Nm3/h
LMO-4093±2%40Nm3/h
LMO-5093±2%50Nm3/h
LMO-6093±2%60Nm3/h
LMO-7093±2%70Nm3/h
LMO-8093±2%80Nm3/h
LMO-9093±2%90Nm3/h
LMO-10093±2%100Nm3/h
LMO-11093±2%110Nm3/h
LMO-12093±2%120Nm3/h
LMO-13093±2%130Nm3/h
LMO-14093±2%140Nm3/h
LMO-15093±2%150Nm3/h
LMO-18093±2%180Nm3/h
LMO-20093±2%200Nm3/h
Powerful Plateau Oxygen Generator: Fast Oxygen Supply for Thin Air 1
PSA Technology Introduction
PSA (Pressure Swing Adsorption) Technology represents a revolution in non-cryogenic air separation and oxygen generation. This advanced system uses a special grade of Zeolite Molecular Sieve (ZMS) for efficient oxygen production.
  • The compressed air passes through a Twin Tower PSA module with automatic changeover valves
  • After processing through a Refrigerated Dryer, the air is completely dried
  • The dried compressed air contacts the Zeolite Molecular Sieves (ZMS) bed
  • ZMS has the unique property of preferential adsorption of nitrogen molecules
  • The resulting oxygen gas is sent to a surge vessel with maintained minimum pressure via a Back Pressure Regulator
Powerful Plateau Oxygen Generator: Fast Oxygen Supply for Thin Air 2 Powerful Plateau Oxygen Generator: Fast Oxygen Supply for Thin Air 3
Frequently Asked Questions
What is the terms of payment?
T/T, L/C, Western Union etc.
How long is your delivery time?
Generally it is 10-50 working days depending on your order.
How to get a prompt quotation?
When you send us inquiry, please kindly provide the following technical information:
  • O2 Flow rate: ____Nm3/h
  • O2 Purity: ____%
  • O2 Discharge pressure: ____Bar
  • Voltages and Frequency: _____V/PH/HZ
  • Application or use for which industry
We will recommend the most suitable equipment according to your specific requirements.
